Vector Data in GIS

The spatial characteristics of features can be stored in GIS in one of 2 ways: Vector data or Raster data.

Raster data is made up of pixels (also referred to as grid cells). Each pixel is associated with a specific geographical location. The value of a pixel can be continuous (e.g., Slope) or discrete (e.g., Population Density). It is used in Aerial imagery, satellite images, and shaded relief raster’s as the base layer when making maps.

Figure 1: Contour lines (vector data) overlayed on DTM (Raster data)

Difference between Raster Data and Vector Data

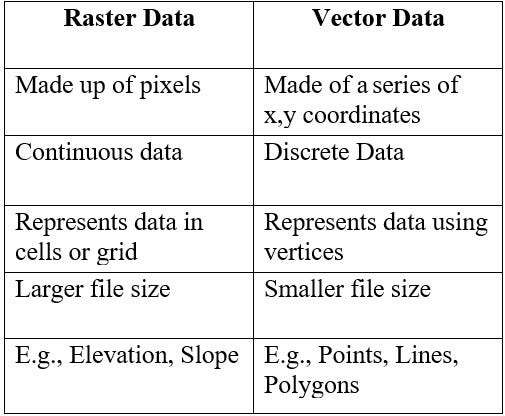

Figure 2: Raster Data vs Vector Data

Figure 3: Raster and Vector data

Vector data is a data structure that can be used to store spatial data. It is used to represent real-world features and assign attributes to those features. It comprises of individual points, stored as coordinate pairs that indicate a physical location in the world. Data in this format can have a geometry type of point, line, and polygon.

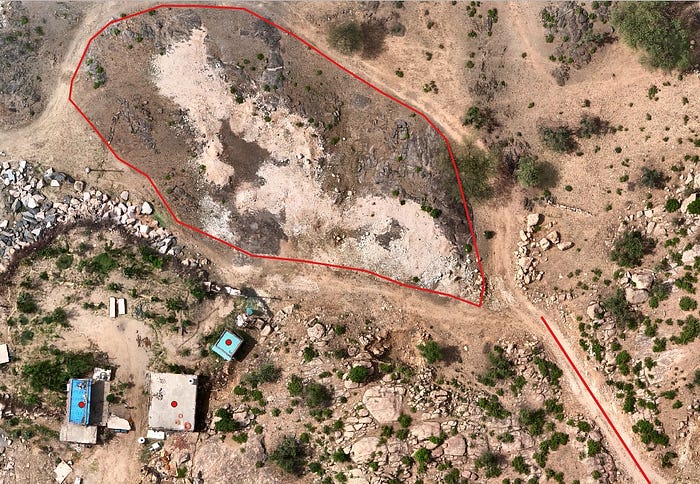

Figure 4: Vector Representation

Point: They are simply X, Y, and Z coordinates. It typically represents a geographic feature too small to be displayed as a line or area. These features also consist of a node and vertex. They generally indicate distinct, discrete components such as buildings, trees, power poles, sample locations, etc. They only have the property of the location.

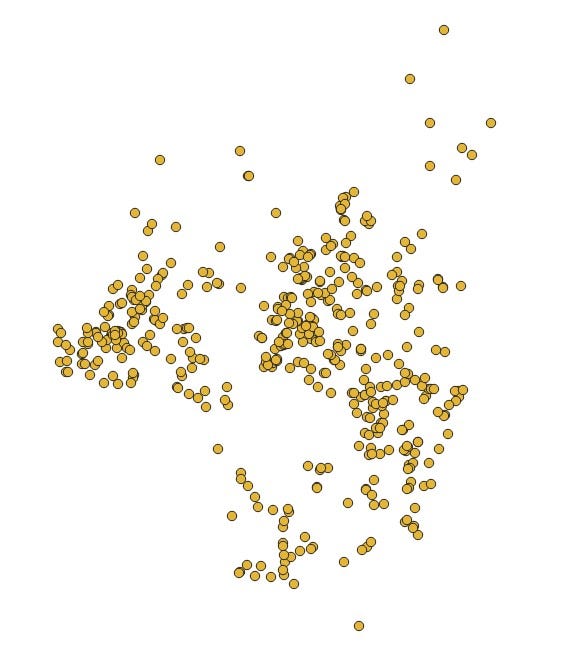

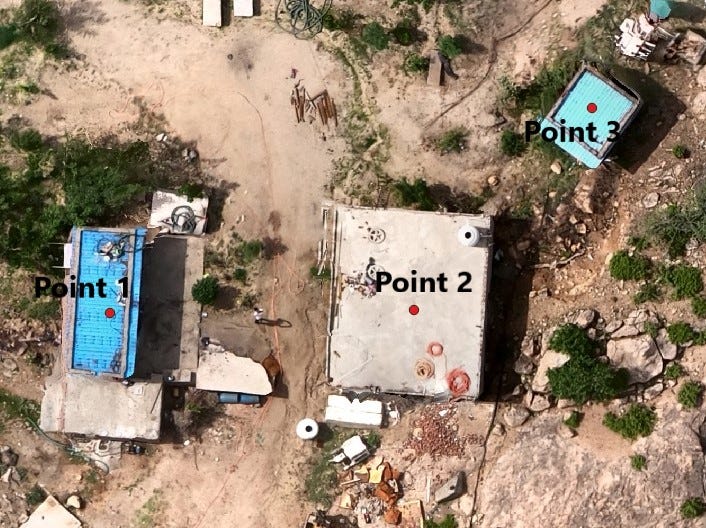

Figure 5: Use cases of point vector data

Line: They are composed of many (at least 2) points that are connected. It represents linear features such as roads, streams, faults boundaries, flight paths, and contours. E.g., If you want to express a route on a map, you can use line vector data to display it on a map.

Figure 6: Use cases of line vector data

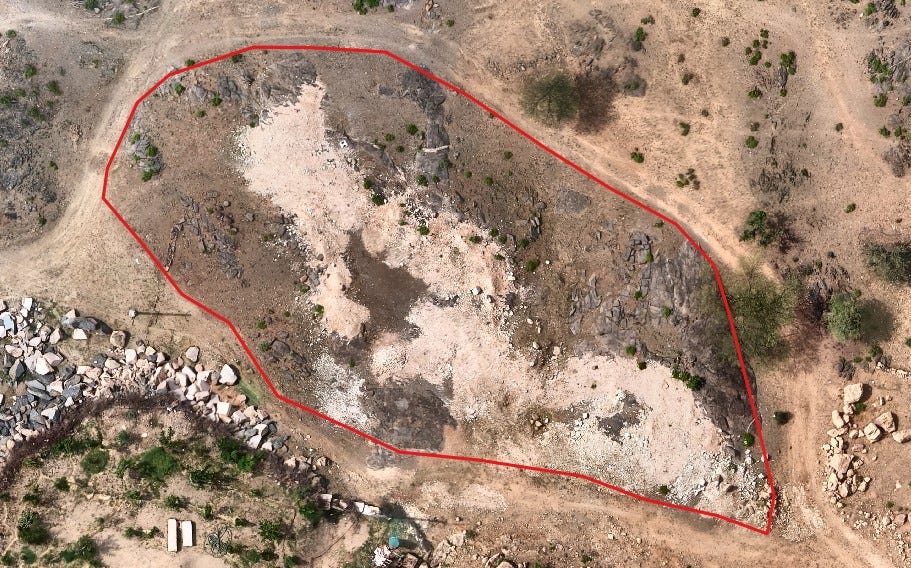

Polygon: It consists of 3 or more vertices connected and closed. They have attributes that describe the geographic feature they represent. They are enclosed areas like dams, lakes, vegetation, country boundaries, etc. Like polyline features, they are created from vertices connected with a continuous line. However, because a polygon always describes an enclosed area, the first and the last vertices should always be in the same place. E.g., If you want the closed boundary of a rock on a map, then you can use polygon vector data to display it on a map.

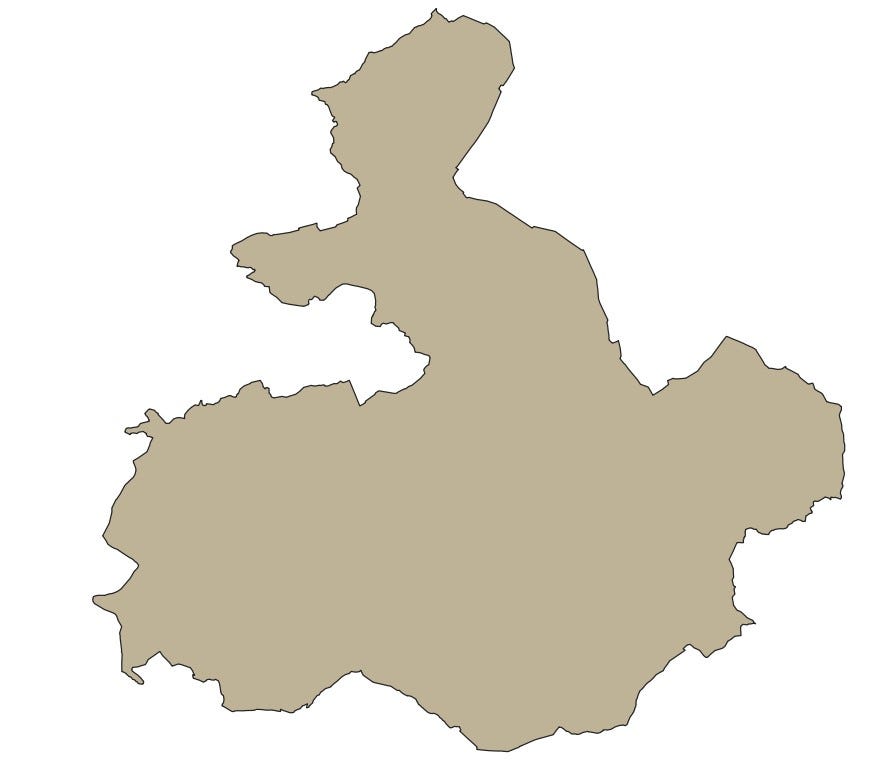

Figure 7: Use cases of polygon vector data

Advantages of Vector Data

• Topology: It can be wholly described and easy to maintain.
• Storage: Easier to store since it requires less disk storage.
• Spatial resolution: It has high spatial resolution and high-precision graphics.
• Accuracy: It can represent all features will high accuracy.
• Representation: Sharp, Clean, scalable, and aesthetically pleasing.

Disadvantages of Vector Data

• Complexity: It has a complex data structure and algorithms.
• Time Consuming: It depends on the size and number of features, so the editing and processing of vector data can be pretty time-consuming.
• Continuous Data: Continuous data is poorly stored and displayed.
• Compatibility: It is not compatible with remote sensing data.

Vector Data Formats

Each vector format represents a different way of storing geospatial data on a computer. Each data format is more or less suited to specific types of projects.

Figure 8: Vector data formats

Some of the essential file formats are:

• Shapefile (SHP): It is a popular geospatial vector data format for a geographic information system (G.I.S.) software storing geographic features, location, shape, and attributes.
• Keyhole Markup Language (KML.): It is a standard format for sharing geographic data and visualizing it in three-dimensional earth browsers like Google Earth.

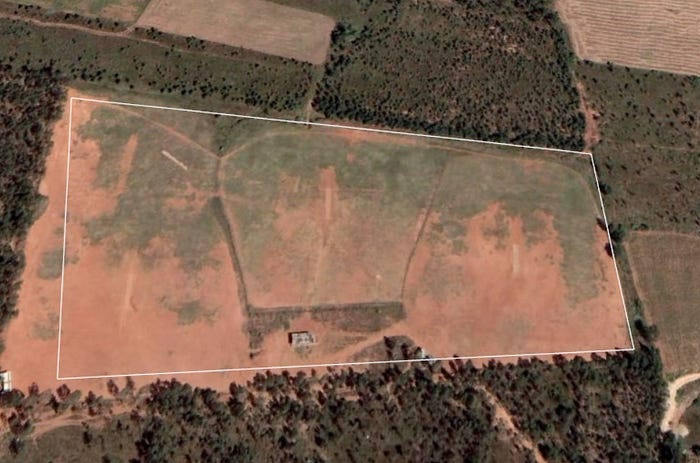

Figure 9: KML Boundary

Figure 9 shows a KML boundary. This is discrete data and contains the location information. We get the coordinates of the points marked here. To get the coordinates right, click the file and open it in notepad.

• AutoCAD Drawing Exchange Format (DXF): A CAD data file format is often used to share drawing data between other CAD programs.

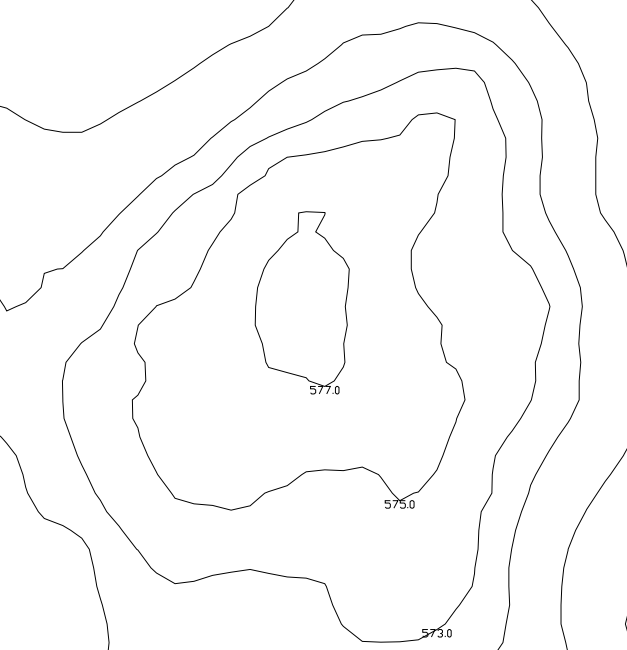

Figure 10: Contour lines in DXF format

In Figure 10 above, the contour lines are in DXF format and can be opened in AutoCAD. They are discrete and contain the x, y, and z values. In the above figure, only the z coordinates are labeled. If we right-click on any contour file and go to properties, we get the x and y coordinates.

• Comma Separated Values (CSV): It can be visualized as a table that can only represent point data. It is a delimited text file that uses a comma to separate values.

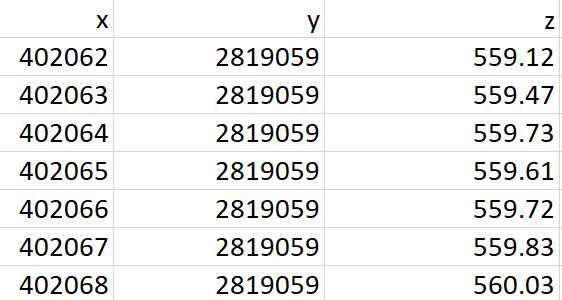

Figure 11: XYZ values in CSV format

Figure 11 above shows the X, Y, and Z values in a comma-separated value (CSV) file. Here, each row represents a single point, and if we open this file in any G.I.S. software, each row will be displayed as a single point.

• Geodatabase (GDB): An ArcGIS-specific format for editing and data management.
• OpenStreetMap (OSM): It is a key value format written in XML for creating and sharing map information.

This brings us to the end of the blog. Hope this article gained some knowledge for you! Let’s meet in the next article to learn more about Raster Data in GIS.

Please find the video on our YouTube channel from here.

Thank you for reading.
